Sanitary Napkin Inspection
Defect Detection System for Sanitary Napkin
Sanitary Napkin Inspection

Inspection Items

  • Core: presence, position on back-sheet, dimension measurement
  • Top layer: contaminations ≥0.5mm
  • Acquisition distribution layer: presence, misalignment, folding
  • SAP: presence, misalignment, folding
  • Wings: abnormal folding
  • Wing tape: presence, misalignment folding
  • Center tape: presence, misalignment, folding
  • Pouch pack: folded product in the sealing, empty pack
  • Disposable tape: presence, misalignment
  • Back sheet: contaminations, foreign objects
  • Date code: presence, position, character correctness
Sanitary Napkin Detection

Inspection Images for Sanitary Napkin

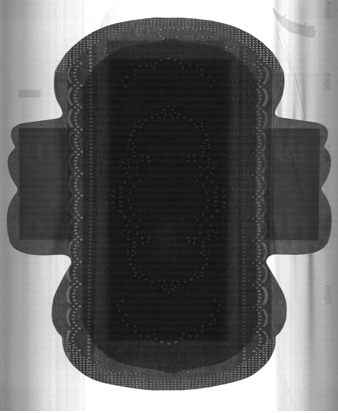

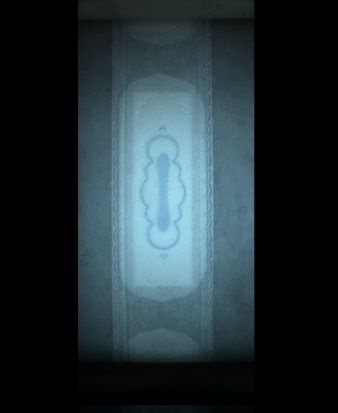

  • Sanitary Napkin Inspection ADL detection image

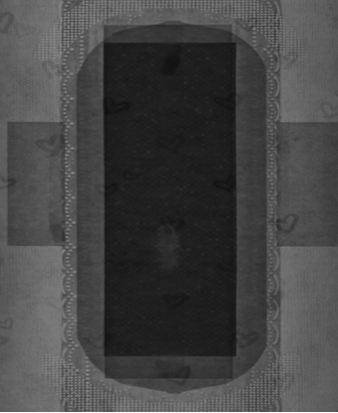

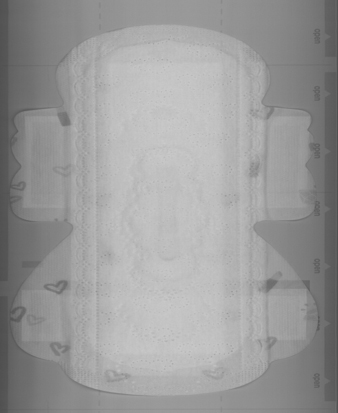

  • Sanitary Napkin Inspection SN front side image

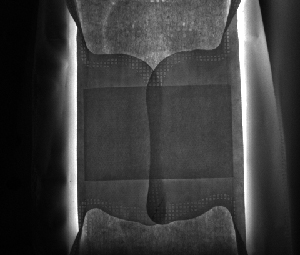

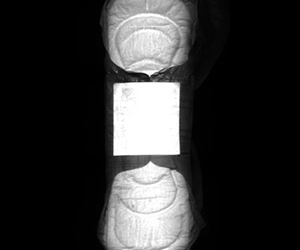

  • Sanitary Napkin Inspection Wing tape/center tape image
  • Sanitary Napkin Inspection Wings image

Innovative Detection of Sanitary Napkins

When the installation of camera and light source is limited in space, we can offer multiple options of lighting to enable the inspection result to the highest reliability;

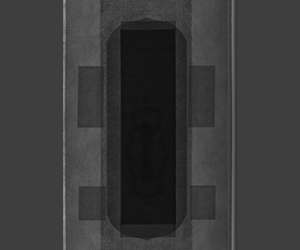

  • Sanitary Napkin Inspection Solution 1
  • Sanitary Napkin Inspection Solution 1
  • Sanitary Napkin Inspection Solution 2
  • Sanitary Napkin Inspection Solution 2

When sanitary napkin features a hot melt pattern, our vision system can make the foreign objects to be easily detected by filtering the pattern;

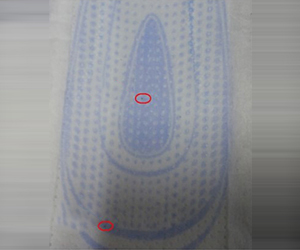

  • Actual product Actual product

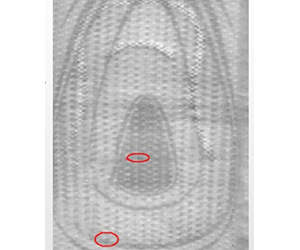

  • Normal detect image Normal detect image

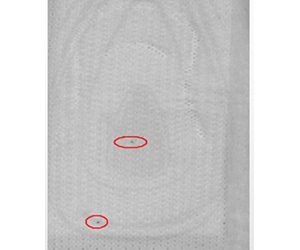

  • Our detect image Our detect image

Exclusive vision illumination technique realizes 100% inspection of product;

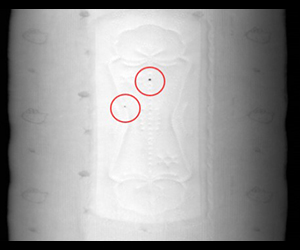

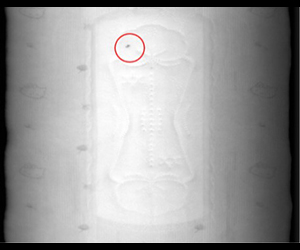

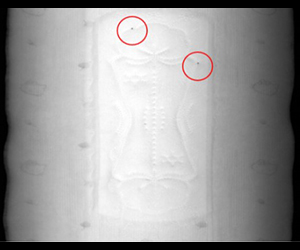

  • Foreign objects detection Foreign objects detection
  • Foreign objects detection Foreign objects detection
  • Foreign objects detection Foreign objects detection
