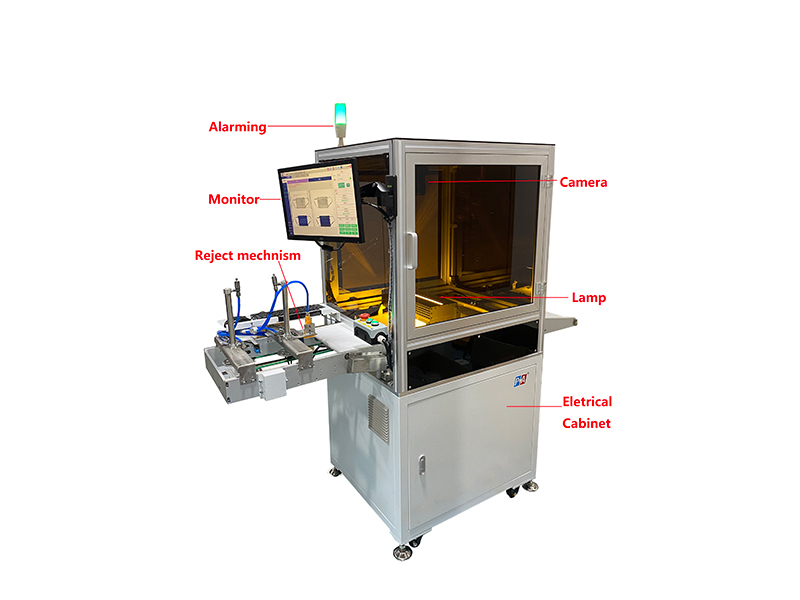

PA2000 Vision Inspection Machine for Surgical Mask

Specifications

Device model: PA2000
Inspected products: 3-ply face mask, KF94 fish-type mask Storage
Max. inspection speed: 120pcs/min
Mask size: 175×9.5mm
Machine dimensions (H×W): 1930×1850mm (the height and width of in-feeding conveyor belt are customizable)
Power supply: AC220V, 50Hz/60Hz
Warranty: one year

Inspection Items

Foreign object detection: contaminations, insects, embedded hair, and other surface flaws
Dimensional inspection: face mask length and width measurement

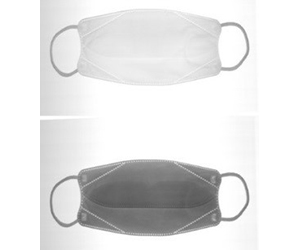

Nose wire inspection: nose wire presence, position, length, deformation, etc.

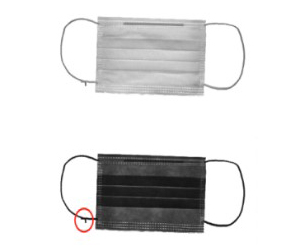

Earloop inspection: earloop presence, length, rips, knots, stains, etc.
Welding inspection: weld position, etc.

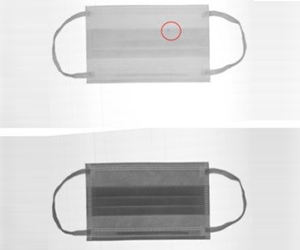

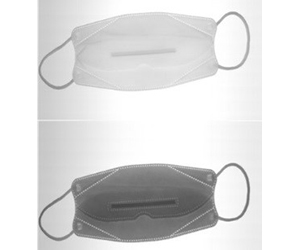

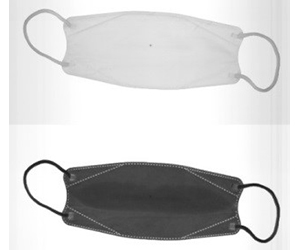

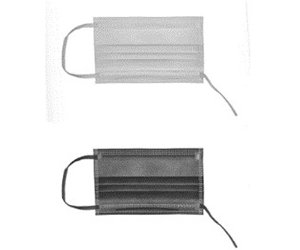

Examples of Detected Objects

Features Of P+A Mask Detector

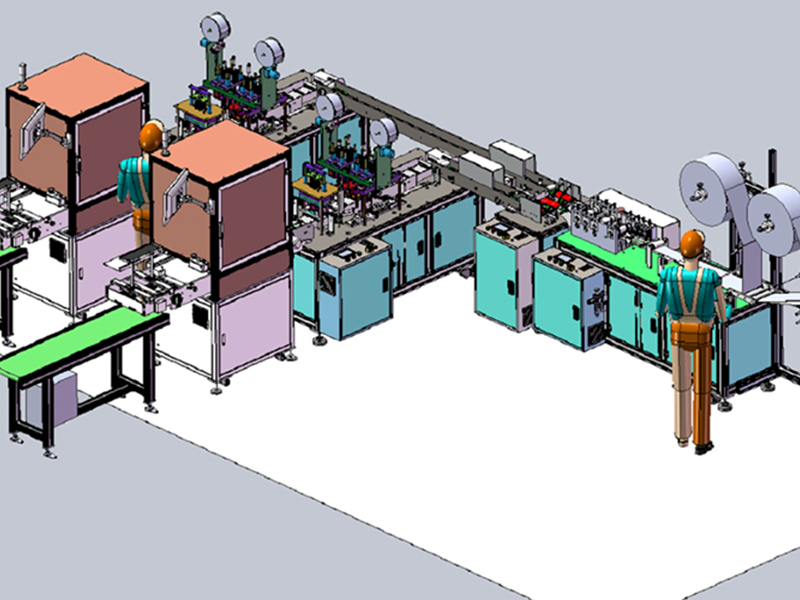

Simple connection with face mask machine;

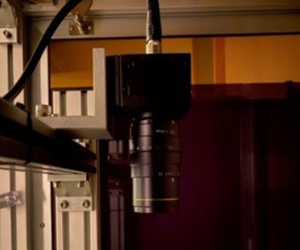

High resolution line scan camera for 0.3mm flaws detection;
100% detection on both sides of face masks with P+A exceptional double-image technology;
Special-made lamp erases reflect lights on mask PE film pack;

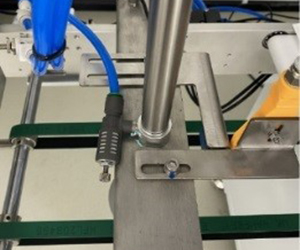

Automatic reject mechanism;
Reasonable inlet structure to avoid material stuck;
Real-time manufacturing data display;
Traceable records of daily production;
Remote monitoring function for immediate technical support;

Details
