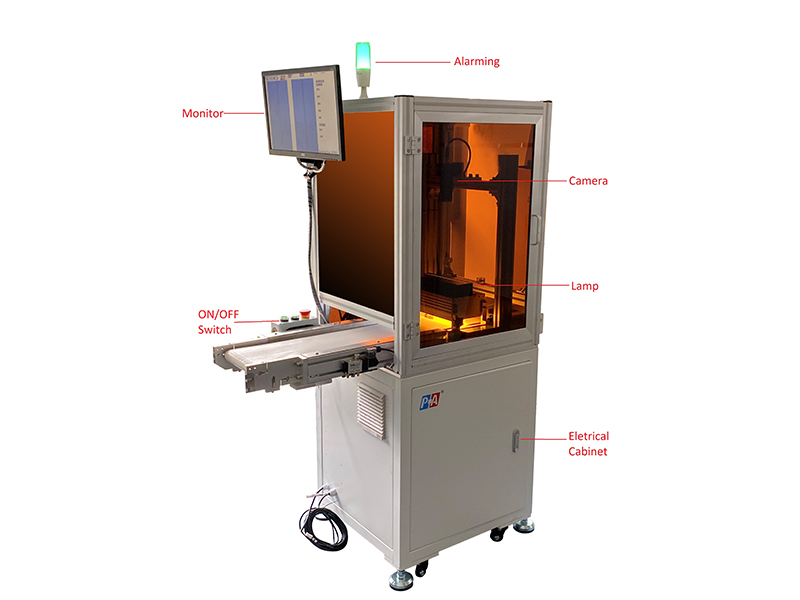

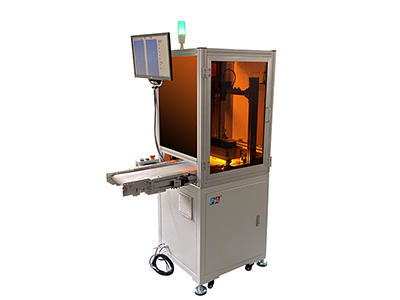

PA4000 Vision Inspection Machine for Individually Wrapped Mask

Specifications

Device model: PA4000
Inspected products: individually wrapped masks
Max. inspection speed: 120pcs/min
Mask size: 220×105mm
Machine dimensions (H×W): 1730×1300mm (the height and width of in-feeding conveyor belt are customizable)
Power supply: AC220V, 50Hz/60Hz
Warranty: one year

Inspection Items

Foreign object detection: contaminations, insects, embedded hair, and other surface flaws
Dimensional inspection: face mask length and width measurement
Nose wire inspection: nose wire presence, position, length, deformation, etc.
Earloop inspection: earloop presence, length, rips, etc.
Packaging pouch surface inspection: contaminations, hair, and other surface flaws on PE film
Packaging pouch quality checking: wrinkled pouch, empty pouch, multiple pieces in one pouch, etc.

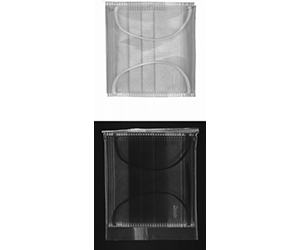

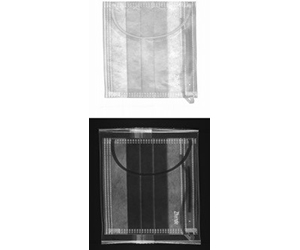

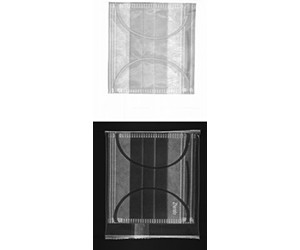

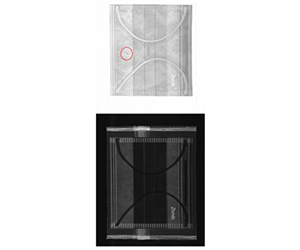

Examples of Detected Objects

Features Of P+A Mask Detector

Simple connection with face mask machine;

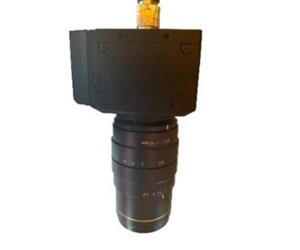

High resolution line scan camera for 0.3mm flaws detection;
100% detection on both sides of face masks with P+A exceptional double-image technology;
Special-made lamp erases reflect lights on mask PE film pack;

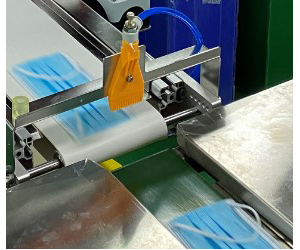

Automatic reject mechanism;
Reasonable inlet structure to avoid material stuck;

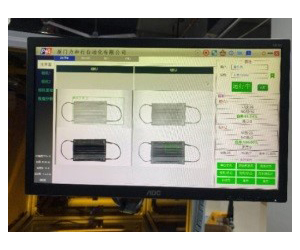

Real-time manufacturing data display;
Traceable records of daily production;
Remote monitoring function for immediate technical support;

Details

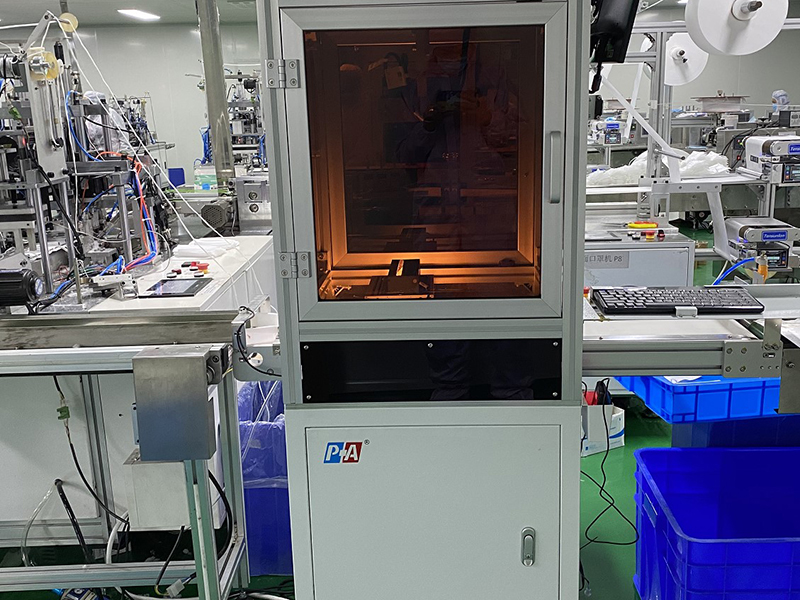

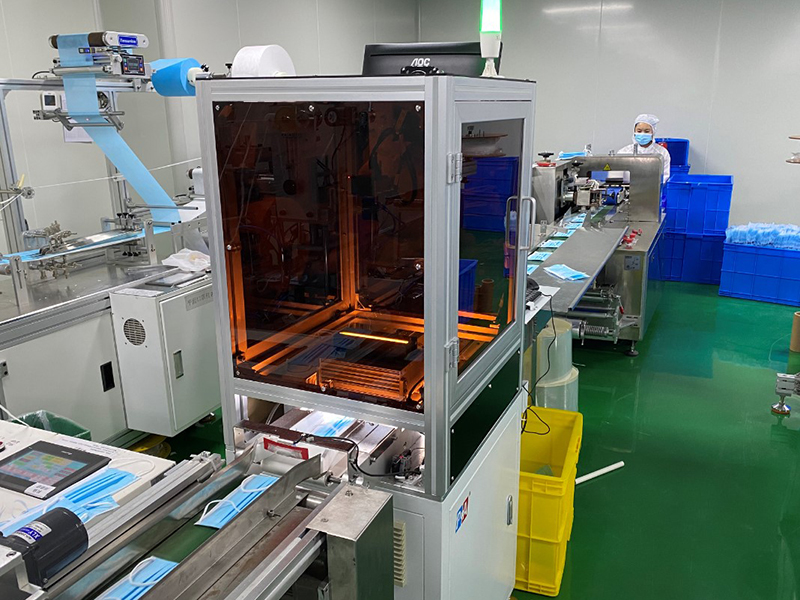

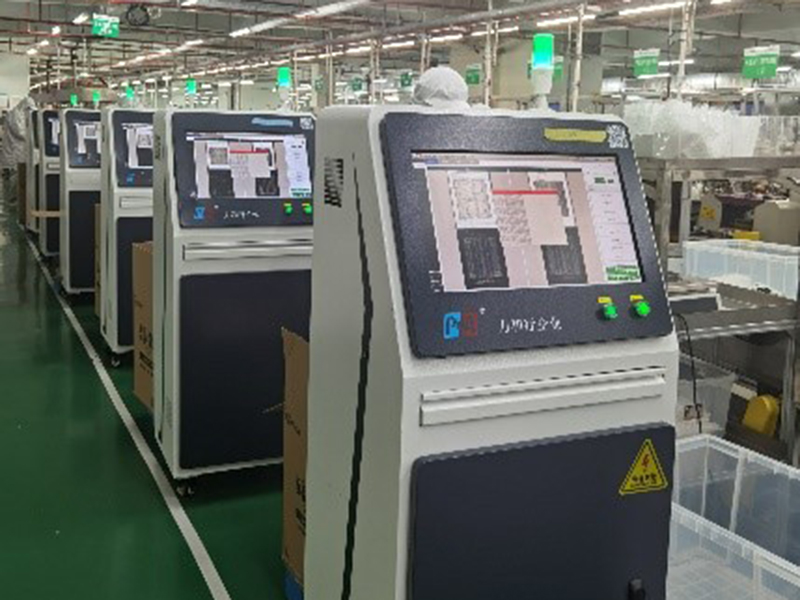

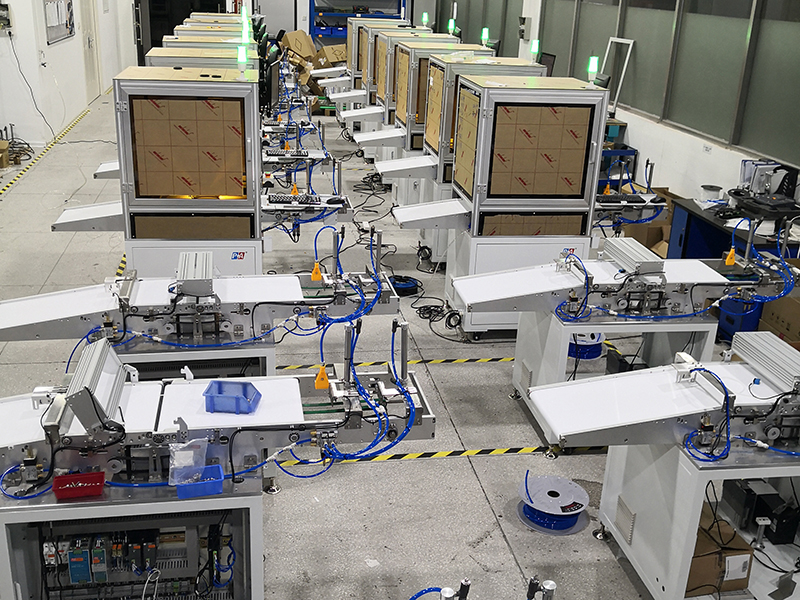

Vision Inspection Machines At Customers’ Sites
